For over 35 years, Kensington has been The Professionals’ Choice for desktop productivity solutions. Continuously supporting the most advanced technology, Kensington has engineered the game-changing SD5200T Thunderbolt 3 Docking Station for Windows and Mac. Whether you’re a video editor, graphic designer, content creator, gamer, or just someone who wants to simplify a 4K workspace, you get more—more speed, more pixels, more power, and more possibilities. Accommodating a single Thunderbolt 3 cable carrying up to 40Gbps of data, which is enough bandwidth to simultaneously run two 4K monitors at 60fps, while also providing up to 85W of laptop charging, the SD5200T Thunderbolt 3 Docking Station is a power user’s solution for hyper-productivity.

• Best For: Thunderbolt 3 or Thunderbolt 4 Laptops & Ultrabooks and Monitors that support up to 4K
• Connection Technology: Thunderbolt 3 (Thunderbolt 4 laptops supported at Thunderbolt 3 features)
• USB-C Power Delivery: Supports USB-C PD 2.0 (85W of laptop charging)
• Compatibility: macOS 10.12 or above, Windows 10
• # of Monitors Supported: 2
• Video Ports: 1 x DisplayPort v1.2++ and 1 x Thunderbolt 3 Port
• Maximum Resolution Supported: Single monitor: 5K (5120 x 2880 @ 60Hz) and Dual monitors: 4K (4096 x 2160 @ 60 Hz)
• Plug & Play installation without need for drivers or downloads
• System Requirements: Only compatible with laptops equipped with Thunderbolt 3 or Thunderbolt 4 ports; not backwards compatible with Thunderbolt 1 or Thunderbolt 2. For Windows based devices, ensure your laptop supports Power Delivery.
• Warranty: 3 Years
• Apple M1 - While this docking station will work with the M1 MacBook, only a single video output is supported. For multi-monitor support on your M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (ex: SD4700P, SD4750P, SD4780P or SD4900P) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974).

•

  Cross-Platform Compatibility

  This progressive Thunderbolt 3 dock (now supporting Thunderbolt 4 laptops at Thunderbolt 3 features) works with both Windows and macOS; providing the ultimate laptop docking station.

•

  Thunderbolt 3 Technology — The Apex of USB-C Performance

  Brings lightning fast data transfer speeds up to 40Gbps to your desktop setup, allowing you to transfer a 4K movie in less than 30 seconds and connect two 4K displays with nearly 16 million more pixels than an HDTV – all while supplying power to your host.

•

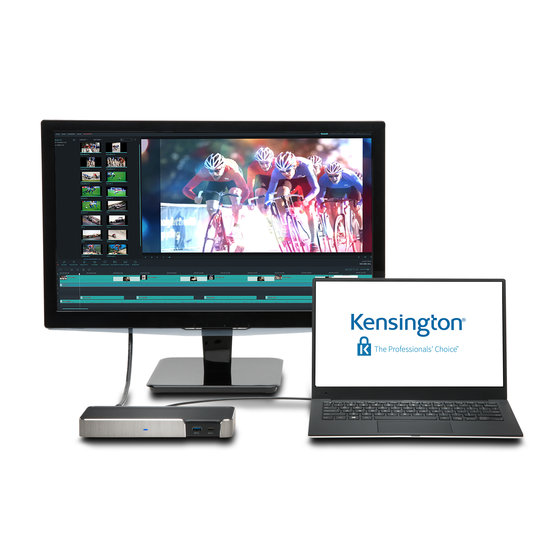

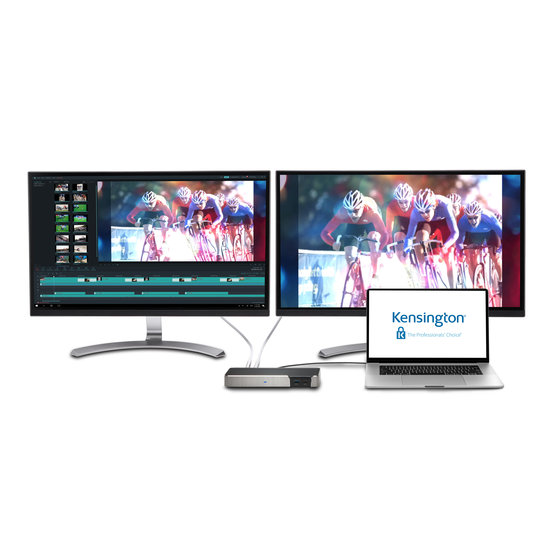

  5K or 4K for Dual Monitors

  The perfect solution for business professionals, designers, and gamers, the 5K or 4K for connections support the crisp resolution, contrast and color depth of Ultra HD (4096x2160 30bpp @ 60Hz). Using DisplayPort and a Thunderbolt 3 port using a USB-C to HDMI adapter (K33993WW), you’ll see more pixels with more speed than ever before (adapter sold separately).

•

  85W Power Delivery

  Use a single Thunderbolt 3 cable to dock and charge your device, and keep your laptop powered up while you’re working.

•

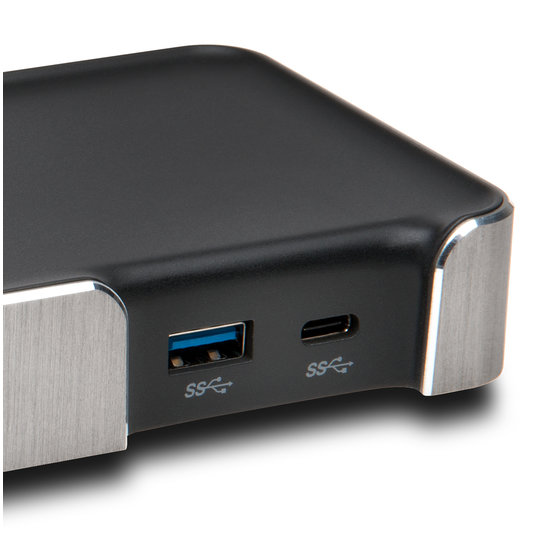

  USB Ports/2.1A Charging Port

  Expand your device’s productivity capabilities by plugging your peripheral accessories into one USB-C 5Gbps port with 15W, two USB-A ports (one of which is a 2.1A charging port), one DisplayPort++, one Gigabit Ethernet port, and 3.5mm headphone and microphone jacks.

•

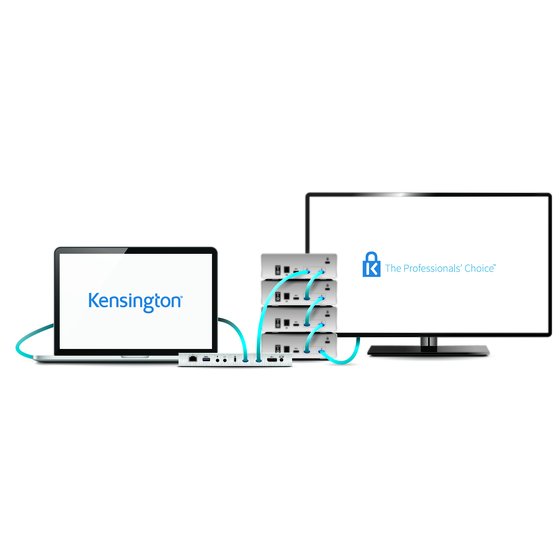

  Daisy Chaining

  In addition to the other accessories you connect via USB, you can also connect up to 5 Thunderbolt 3 devices by daisy-chaining them together using the dual Thunderbolt 3 ports as in/out ports.

•

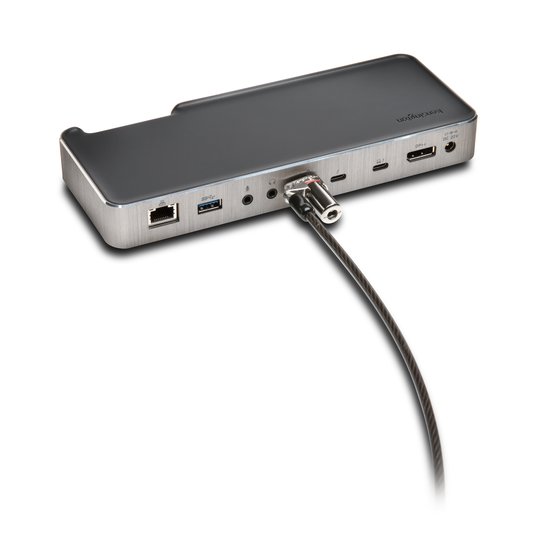

  Kensington Security Slot™

  Allows you to protect your technology investment from potential thieves by easily implementing a cable lock from the #1 brand in physical device security.

•

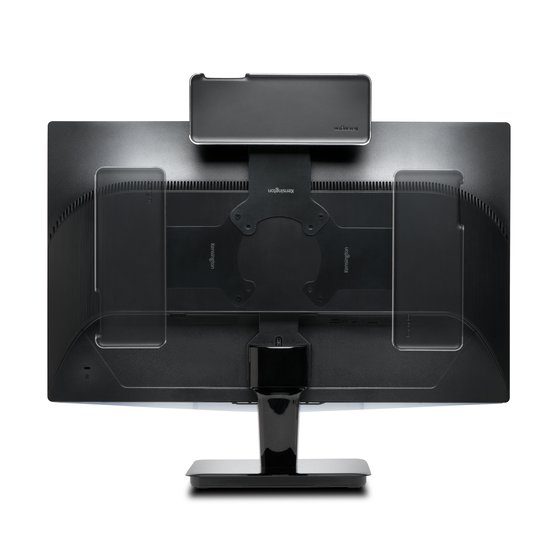

  Zero Footprint Mounting

  The dock can be mounted to the back of any VESA-compatible external display (mounting plate (K33959WW) sold separately), allowing you to keep your desktop less cluttered.

•

  Free Kensington DockWorks™ Software

  Enables the best connection, performance, and security from your Kensington dock.

• Connection Technology: Thunderbolt 3
• Driverless: Yes
• Additional Screen Outputs: 2
• Video Ports: DisplayPort++
• Maximum Resolution: 4K
• Power Delivery : 85W
• Operating System(s): macOS
• Number of USB Ports: 3
• USB Fast Charging: Yes
• Docking Station Family: The Innovator
• DockWorks: Yes
• Best For: Thunderbolt 3 Laptops & Ultrabooks and Monitors that support up to 4K
• Compatibility: Windows 10
• Powered USB Ports:
• USB-A Ports: 2 x USB-A 3.2 Gen1 Ports: (1) front with 5V/2.1A fast-charging & (1) back supporting 5V/0.9A
• USB-C Ports: 1 xUSB-C 3.2 Gen1 Port: (front) with 5Gbps USB-C supplying up to 15W
• Audio: 1 x 3.5mm Microphone port (rear), 1 x 3.5mm Headphone port (rear)
• Data Transfer Speeds: Supports up to 40Gbps data transfer speed
• Ethernet Speed (Mbps): 1000
• Maximum Resolution Supported: Single Monitor: 5K (5120 x 2880 @ 60Hz), Dual Monitors: 4K (4096 x 2160 @ 60 Hz)
• Mounting Option: VESA Mount Compatible: Mounting plate (K33959WW) for 75mm or 100mm VESA layouts sold separately
• Warranty: 3 years
• Plug & Play: Plug & Play installation without need for drivers or downloads
• Security Slot Compatibility: Kensington Security Slot
• System Requirements: Only compatible with laptops equipped with Thunderbolt 3 or Thunderbolt 4 ports; not backwards compatible with Thunderbolt 1 or Thunderbolt 2.
• Thunderbolt Ports: 2 x TB3 Ports: one supporting up to 15W and a second supporting up to 85W (host port)
• USB-C Power Delivery: Supports USB-C PD 2.0 (85W of laptop charging)
• Video Output: Optional Secondary Monitor via USB-C video adapter
• 4K Support: Yes
• Daisy Chaining: Daisy chains up to 5 additional Thunderbolt 3 devices
