Increase your productivity and experience the ultimate plug and play docking experience with the SD4820P USB-C 10Gbps Dual Video Driverless Docking Station. Use the single USB-C cable connection to power your PC device, transfer video, audio, and data at up to 10Gbps, and connect up to two external displays –all with no driver installation required. Only Kensington, the leader in professional desktop performance, makes the most of your laptop’s USB-C connectivity while providing universal compatibility for Windows 7+ and features like Security Slots and Zero Footprint Mounting. An ideal docking solution for graphic and web designers, animators, engineers, financial analysts, and other visual multitasking needs.

• Best For: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to dual 4K (4 Lane mode)
• Connection Technology: USB-C Alt Mode
• USB-C Power Deliver: Supports USB-C PD 3.0 (60W of laptop charging)
• Compatibility: Windows 7 or above
• # of Monitors Supported: 2
• Video Ports: 1 x HDMI v2.0 and 2 x DisplayPort++
• Maximum Resolution Supported: Single Monitor: 3840 x 2160 @ 60Hz or Dual Monitors:3840 x 2160 @ 30Hz in 4 Lane mode
• Plug & Play: Plug & Play installation without the need for drivers or downloads
• System Requirements: Host device must support Power Delivery and DisplayPort Alt Mode over USB-C
• Warranty: 3 Years

•

  Driverless USB-C Connectivity

  Transfer data (up to 10Gbps), video, and audio, and provide up to 60W of power delivery (PD 3.0)* via a single cable for a simple plug and play experience with no software installation required. *Host device must support Power Delivery and*DisplayPort Alt mode over USB-C

•

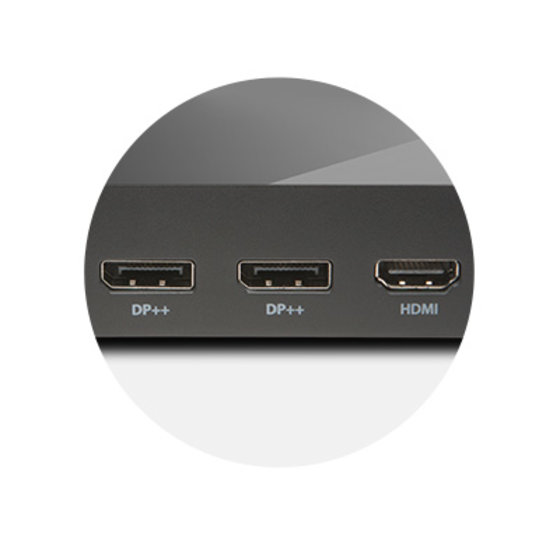

  Dual Video Output

  Provides two DisplayPort++ ports and one HDMI port to allow users to select the right connections and resolutions for their environment –while also eliminating the need for expensive adapters. Supports up to Dual 4K @ 30Hz or Single 4K @ 60Hz in 4 Lane mode.

•

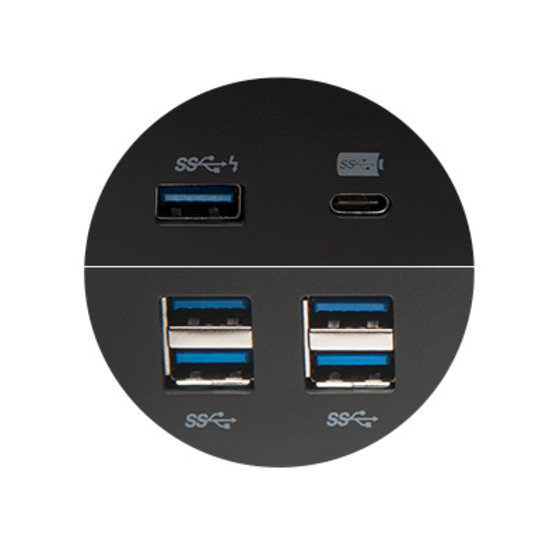

  11-in-1 Dock with 6 USB Ports

  Extend productivity capabilities via two high-speed front ports –one USB-C 3.2 Gen2 port for power delivery and data transfer (up to 5V/3A/10Gbps) and one USB-A 3.2 Gen2 port (up to 5V/2.4A/10Gbps), and four rear USB-A ports (up to 5V/0.9A/5Gbps).

•

  Universal Windows Compatibility

  Seamlessly connects to any Windows 7 or above laptop equipped with USB-C. An ideal dock for HP, Lenovo and Dell devices.

•

  1M USB-C Cable

  Provides extra cable length to easily accommodate different desktop configurations.

•

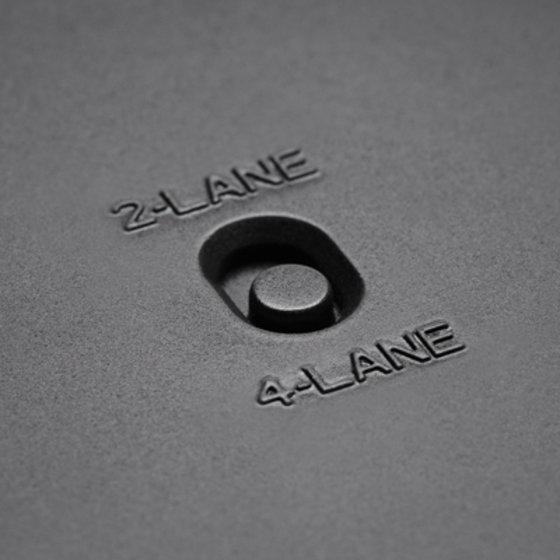

  Dynamic 4K Switch

  The dynamic 4K switch provides users with a customizable dock that easily adapts to different needs. 2 Lane supports up to Dual 1080p @ 60Hz with lightning fast USB speeds of up to 10Gbps. For users looking for 4K resolution, 4 Lane will allow for Dual 4K @ 30Hz with USB speeds clocking down to 480Mbps. Note: In 4 Lane mode, wired Ethernet will be reduced from 1Gbps to 100Mbps.

•

  Kensington Security Slot

  Easily implement a cable lock from Kensington, the #1 brand in physical device security, to protect your technology investment from potential thieves. Optional MicroSaver® 2.0 Keyed Lock kit (K65020WW) sold separately.

•

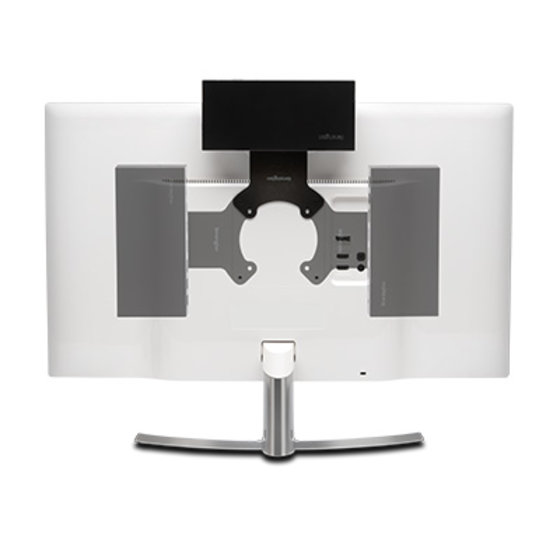

  Zero Footprint Mounting

  Reduce desktop clutter by mounting your dock to the back of any VESA-compatible external display. Mounting plate (K33959WW) sold separately.

• Connection Technology: USB-C Alt Mode
• Driverless: Yes
• Additional Screen Outputs: 2
• Video Ports: DisplayPort++
• Maximum Resolution: 4K
• Power Delivery : 60W
• Operating System(s): Windows
• Number of USB Ports: 6
• USB Fast Charging: Yes
• Docking Station Family: The Task Master
• DockWorks: Yes
• Best For: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to dual 4K (4 Lane mode)
• Compatibility: Windows 7 or above
• USB-A Ports: 5x: (1) USB-A 3.2 Gen2 (front) with 5V/2.4A fast-charging & (4) USB-A 3.2 Gen1 (back) supporting 5V/0.9A
• USB-C Ports: 1 x: USB-C 3.2 Gen2 (front) with 5V/3A charging
• Audio: 1 x 3.5mm Combo Microphone & Headphone Port (front)
• Data Transfer Speeds: Supports up to 10Gbps data transfer speed
• Ethernet Speed (Mbps): 1000
• Maximum Resolution Supported: Single Monitor: 3840 x 2160 @ 60Hz or Dual Monitors:3840 x 2160 @ 30Hz in 4 Lane mode
• Mounting Option: VESA Mount Compatible: Mounting plate (K33959WW) for 75mm or 100mm VESA layouts sold separately
• Warranty: 3 years
• Plug & Play: Plug & Play installation without need for drivers or downloads
• Security Slot Compatibility: Kensington Security Slot
• System Requirements: Host device must support Power Delivery and DisplayPort Alt mode over USB-C
• USB-C Power Delivery: Supports USB-C PD 3.0 (60W of laptop charging)
• Video Output: 1 x HDMI v2.0
• 4K Support: Yes
